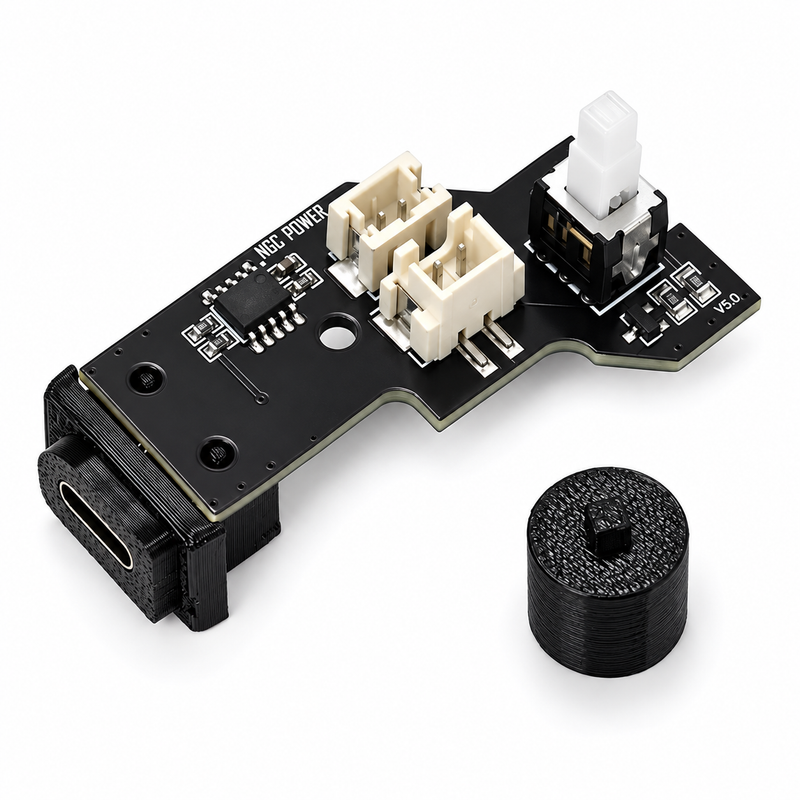

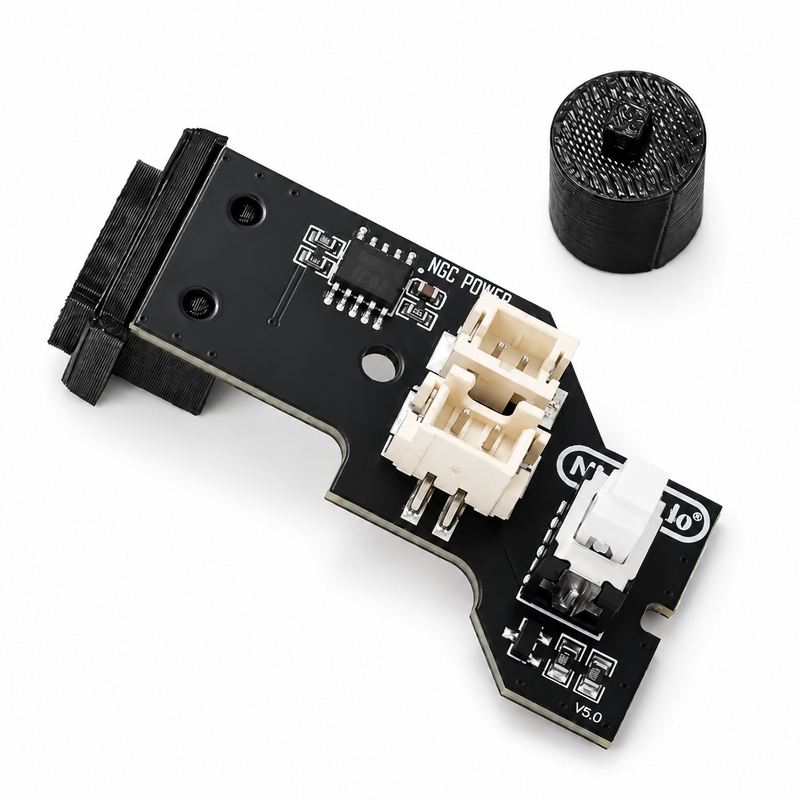

Nintendo GameCube USB-C Power Supply Board — 12V / 3A PSU Replacement
$45.00
Ships in approximately 3 weeks
Ships Australia-wide via tracked post
A modern USB-C Power Delivery replacement for the Nintendo GameCube's original power supply. The stock unit is a large, heavy brick that is increasingly hard to find in good condition — and like every supply of its age, its capacitors do not last forever. This board takes its place and runs the console from a USB-C PD charger instead, which is a great deal easier to live with, to travel with, and to replace.
Power delivery has come a long way since these machines were engineered. A USB-C PD supply is smaller, cooler and far better regulated than anything available when the console was new — and when it eventually needs replacing, it is an off-the-shelf part rather than a hunt for a decades-old brick.
Fits Both GameCube Revisions
Compatible with DOL-001 (the original model, with the digital AV output) and DOL-101 (the later revision without it). A direct-fit replacement requiring no modification to the console.
Requires A USB-C PD Charger
The board draws 12 V at 3 A over USB-C Power Delivery, and a charger that cannot supply that exact profile will not run the console — plenty of otherwise-capable USB-C chargers skip 12 V altogether, or offer it only at reduced current. On our 200 W six-port charger use PD1; the 270 W supplies it on all four USB-C ports. Not sure what your charger can do? Our USB-C PD power meter reads the real figures back, port by port.
Why Replace The Original Supply
- Stable, regulated output — a consistent 12 V / 3 A, without the voltage sag behind crashes and spontaneous resets on a tired supply
- Far less to carry and store than the original brick, which is among the bulkiest of its console generation
- Modern, replaceable power source — power comes from a standard USB-C charger you can replace off the shelf, instead of hunting down a 20-year-old original
- One charger for several consoles if you have more than one system converted to USB-C
Specifications
- Output: 12 V / 3 A DC, regulated
- Input: USB-C Power Delivery, 12 V / 3 A required
- Fitment: Nintendo GameCube DOL-001 and DOL-101
- Output type: pure DC — the USB-C port is a power input, not a data or charging port
Installation
The board takes the place of the console's original power supply and requires no modification to the motherboard.
Retro Craft can install this board for you. Send your console to us from anywhere in Australia, or drop it in if you are local to Perth, and it comes back tested and ready to play. Get in touch before ordering and we will sort out the details.
What's Included
One power supply board. A USB-C charger and cable are not included — see Power Solutions and Adapters for units that supply what this board needs.
Shipping & Collection
Ships Australia-wide via tracked post. Perth locals may also arrange local collection — contact us to arrange.
